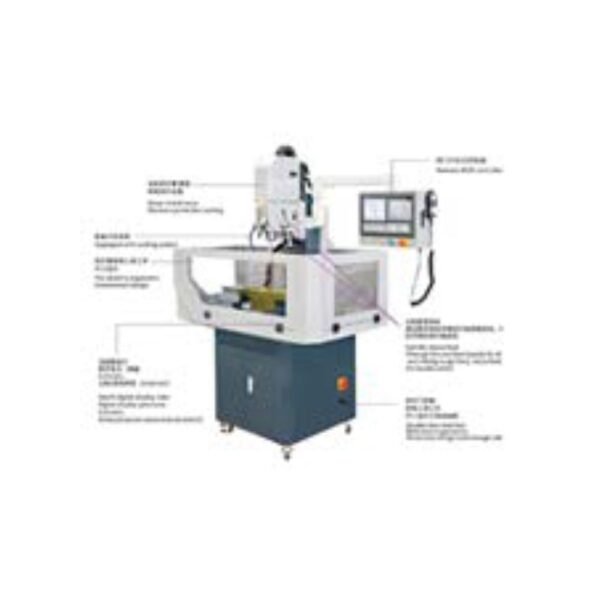

FUKUTEN MINI CNC MILLING MACHINE HS-XK28S GSK 980MDC
Work Table Work Table size : 540*180 mm Limited weight : 100kg T-Slot (width*number*distance) : 12mm*3*63mm Travel X-Axis : 325 mm Y-Axis : 200 mm Z-Axis : 290 mm Distance form Spindle Nose to Table Surface : 50-340mm Distance between Spindle Center to Column : 210 mm Spindle Spindle Speed : 0-3000 rpm Spindle Taper : MT3 Ways of Holding tools : Manual Clamping Feeding Cutting feed : 0-5000 mm/min Rapid Speed : 8000 mm/min Precision Repeatability of positioning : 0.015mm Positioning : 0.025mm Spindle Runout : 0.015mm Motor Motor Power, DC brush motor : 1.88KW/6N.m XYZ feed Power motor : 750W/2.4N.m
