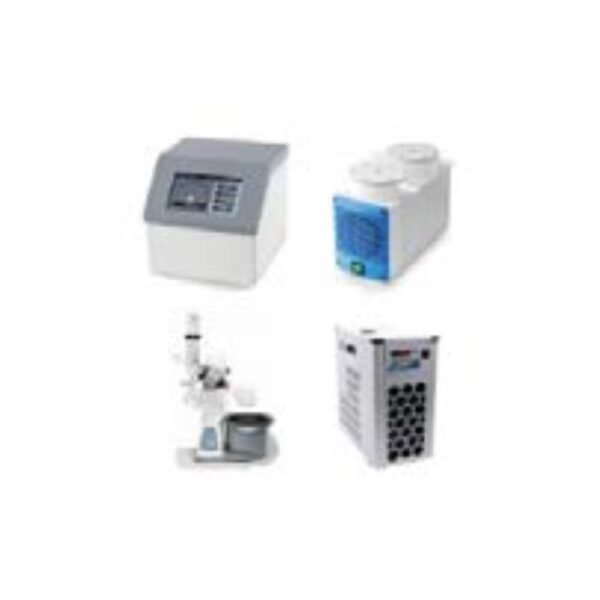

FUKUTEN ROTARY EVAPORATOR VC100 – C410 – RE100 PRO – CCP5
Specifications: VC100 Vacuum setting range 1-1000mbar Vacuum measurement range 1-1000mbar Control mode Single-point control mode, Programmed control mode Control program Can store up to 5 programs, each containing 5-step control (capable to set the degree of vacuum and time) Setting method Touch screen setting Display 5” TFT Sensor overload pressure 1,500mbar Connector diameter 8mm Materials in contact with vapor PTFE, PP, silicone and ceramics Power 600W Compatible conditions with vacuum pump Power of 50Hz vacuum pump ≤400W Power of 60Hz vacuum pump ≤500W C410 Maximum Vacuum:13mbar Work Mode: Continuous Operation Nozzle Size:8mm, Power: 95W Motor speed:1450rpm Noise 50dB RE100 PRO Motor Type Brushless DC motor Speed Range 20-280rpm Display LCD(speed, temperature, time) Direction of Rotation Clockwise and counterclockwise Heating Temperature Range Room temp. to 180℃ Control Accuracy water: ±1℃ oil: ±3℃ Heating Power 1300W Lift stroke Motorized 150mm Timer Yes Time Setting Range 1-999min Permissible Ambient Temperature 5-40℃ Permissible Relative Humidity 80%RH Protection Class IP20 USB Interface Yes CCP5-MINI Temperature Range -20℃ to Ambient Temp. Temperature Display LED Display, Accuracy 0.1 ℃ Temperature Stability ±0.3℃ Refrigerating Capacity 700W Pump Pressure 0.3bar Pump Suction 0.2bar Pump Flow Max. 22L/Min Tank Size 4.5L Cooling Water Tubing Silicone Communication Interface Optional RS232/485 Low-level Alarm Optional Heating Function Optional Operating Environment 5-32 ℃ Outer Connected Dimension Standard 8mm insulation tube Power supply 220V/50Hz
